Description
- 7000 Cycles at 80% DOD
- Grade A LiFePO4 Cells, 10+ Years Lifespan
- 24.0lb, 1/5 Lighter than Lead-acid Batteries
- Group 24 Battery Size (L10.2*W6.6*H8.3 in)
- BMS Protection, Certified by UL, ETL, FCC and UN38.3

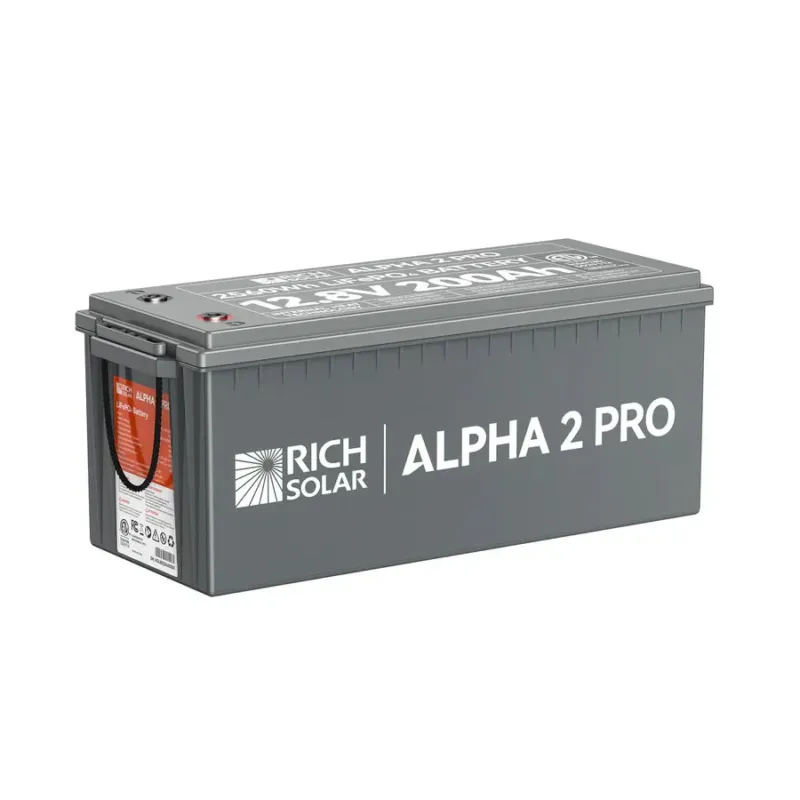

Rich Solar ALPHA 2 PRO 12V 200Ah LiFePO4 Lithium Iron Phosphate Battery
| SKU | RS-B122SP |
|---|---|
| BATTERY | |
| Cell Type | LiFePO4 Battery |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 2560Wh |
| Cycle Life | 7000 cycles at 80% DOD |
| Maximum Expansion (Parallel & Series) | 4P4S |
| BMS | |
| BMS | 100A |
| Maximum Charging Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Maximum Discharge Voltage(CC/CV) | 14.4V |
| CHARGE | |
| Charge Method | CC/CV |
| Charge Voltage | 14.4V ± 0.2V |
| Recommend Charge Current | 50A (0.2C) |
| TEMPERATURE | |
| Charge Temperature | 32℉ to 131℉ |
| Discharge Temperature | -4℉ to 140℉ |
| Storage Temperature | 14℉ to 113℉ |
| SELF-HEATING | |
| Heating Function | 100W |
| Internal Heating Starts | < 41℉ |
| Internal Heating Stops | > 50℉ |
| OTHERS | |
| Net Battery Weight | 52.9 lbs |
| Size(L*W*H) | 20.9 in x 8.1 in x 8.5 in |
| Housing Material | ABS (Flame Retardant Plastic) |
| Protection Class | IP65 |
| Certifications | UL1973, FCC, UN38.3, ETL |
