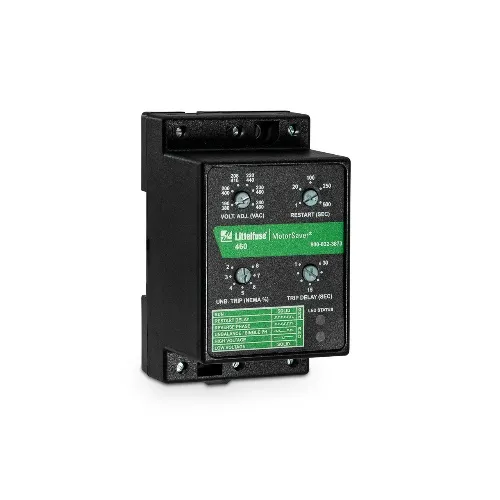

Littelfuse 460L-OEM 3-Ph Volt.Mon./190-480v/Adj.Rd Fast Shipping

Littelfuse 460L-OEM is an efficient and reliable voltage monitor designed for a wide range of applications. With a pilot duty output load rating of 480 VA at 240 Volts B300 and a general purpose output load rating of 10 A at 240 Volts, it is capable of handling various power requirements. The termination type is torque with 6 in-lbs, suitable for both stranded and solid wires in the range of 12 – 20 AWG. It supports an input AC line frequency of 50/60 Hz and operates effectively in a humidity range of 10 – 95% non-condensing. The undervoltage trip voltage is set at 90% with a trip delay range of 1 – 30 s (adjustable) for under/over and unbalance voltage, and a fixed delay of 4 s for single-phase faults exceeding 25% unbalance voltage. The maximum input power is 6 VA. It offers a restart delay range of 1 – 500 s (adjustable) and an undervoltage reset voltage of 93%. The voltage unbalance trip point is set at 6% and the overvoltage trip voltage at 110%. The voltage unbalance reset is 4.50%. It provides a trip point accuracy of ±1% and an overvoltage reset voltage of 107%. With protection class IP20 and NEMA 1 (finger safe) ratings, it ensures safety and reliability.
