Description
- Delivers up to 1000Wh per day with 5-6 hours of sunlight.
- 10-year warranty and 25-year 80% power output guarantee.
- 9 bus-bars and PERC technology for higher efficiency.
- Half-cut cells and bypass diodes enhance accidental shading tolerance.
- Durable design ensures long-lasting use in challenging environments.
- Pre-drilled holes facilitate easy installation.

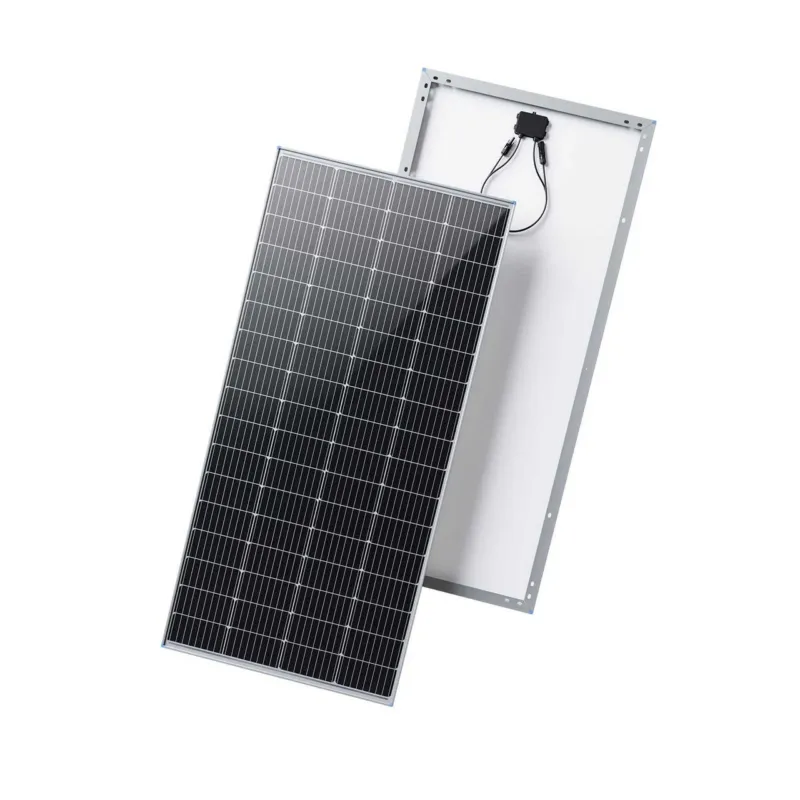

Renogy 200 Watt 12 Volt Monocrystalline Solar Panel
| Max Power at STC | 200W |
|---|---|
| Short Circuit Current | 11.05A |
| Optimum Operating Current | 10.42 A |
| Maximum System Voltage | 600 VDC UL |
| Output Cable | 13 AWG (2.6 ft long) |
| Weight | 12 kg |
| Junction Box | IP65 |
| Module Efficiency | 19.2% |
| Material and workmanship warranty | 10-Year Workmanship Warranty |
| Open Circuit Voltage | 23V |
| Optimum Operating Voltage | 19.2 V |
| Operating Temperature | -40°F~194°F |
| Maximum Series Fuse Rating | 20A |
| Dimensions | 58.7 in x 27.5 in x 1.38 in |
| Solar Cells | 68 Cells ((2+2)*17) |
| Connectors | Solar Connectors |
| Cell dimension | 6.25 in x 6.25 in x 40 cells |
| Performance Warranty | Over 80% Output at 25 Years |
