Sale!
Affordable Phoenix Contact 3003952 Feed-through terminal block UK 5 N YE

Affordable Phoenix Contact 3003952 Feed-through terminal block UK 5 N YE

Original price was: $3.05.Current price is: $1.52.

SKU: SK0061977-US20260519-084255 Category: Tag:

Description

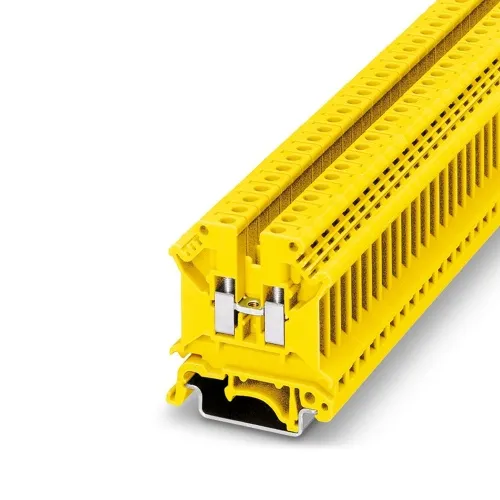

Phoenix Contact 3003952 This terminal block features a feed-through design with a nominal voltage of 800 V and a maximum current capacity of 32 A, accommodating two connections via screw attachment. The rated cross-sectional area is 4 mm2 but can range from 0.2 to 6 mm2, and it comes in three mounting types (NS 35/7.5, NS 35/15, and NS 32). Additionally, this terminal block has a yellow color.

Specifications

Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Yellow
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
